Stratton Ski Resort

Stratton Mountain - VT

Top Rated Sky Resort Complex in the United States

-------------------------------------------------------------------

Poncelet Undershot Waterwheel

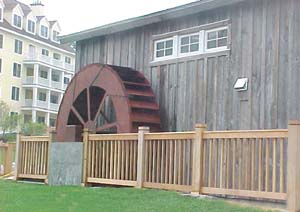

10 Foot / 24inch wide welded section Poncelet waterwheel installed June, 2005

Industrual Metal Primer Paint - Final painting and landscaping to come



Artist rendering

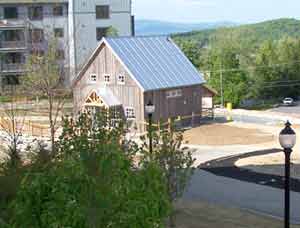

To Finished Building - only item missing is the waterwheel

Poncelet Waterwheel

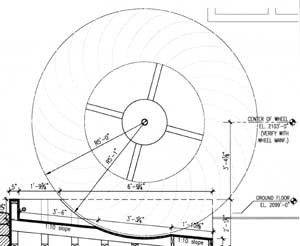

Concept Wheel Design

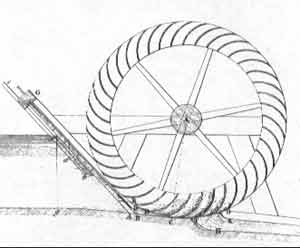

Waterwheel Factory has studied many of the old document to be able to design a true Poncelot Waterwheel
Poncelet Waterwheel

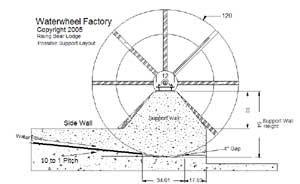

Support is redrawn by the architect to meet building specification

Poncelet Waterwheel

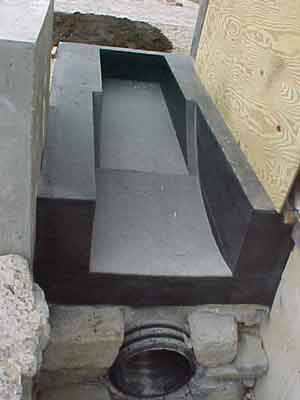

Flow liners is constructed

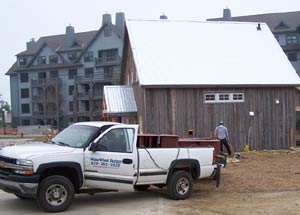

Waterwheel Factory sets up for the one day installation
Poncelet Waterwheel

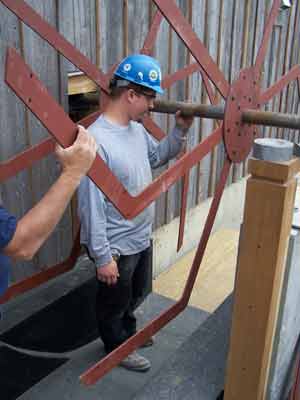

Axle and spokes are assembled



These spokes not only added grace in its design but were innovative in the assemble process of the wheel
Poncelet Waterwheel

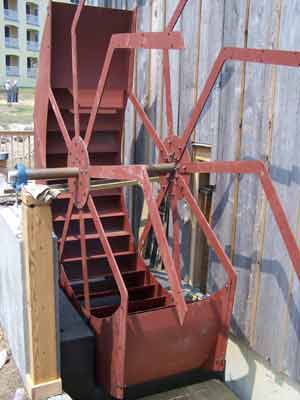

Wheel assemble in mid process
Poncelet Waterwheel

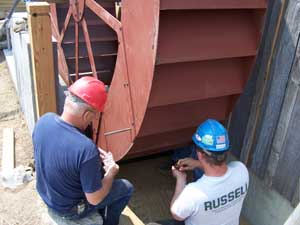

Last Bolt goes in without a problem

Finished Wheel

This poncelet waterwheel was so balanced the wind started to turn this 1000 lb. wheel on its own and we had to shim it up to prevent it from turning.

This will be recorded as one of the few Poncelet waterwheel in this country.
